Carlisle CCW MiraDrain 9000 is designed for use in horizontal plazas, roof decks, and split slabs. It also serves as a protection course when used in conjunction with CCW Waterproofing Membranes.
What makes MiraDrain high-performance?

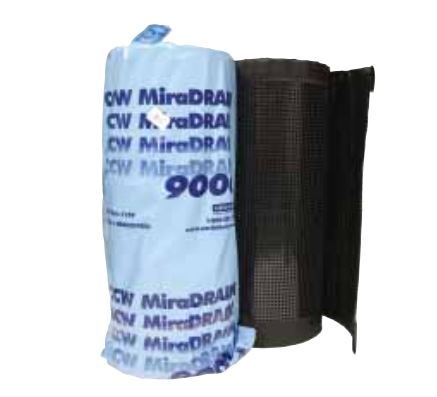

CCW MiraDrain 9000 is a high-strength drainage composite consisting of a three-dimensional, high-impact polypropylene core and a woven filter fabric. The versatile fabric prevents small particles from entering the core while allowing surface moisture to pass freely. The woven, monofilament fabric withstands high abrasion from applied overburden and prevents intrusion into the drainage core due to its low elongation characteristics.
Features and Benefits of CCW MiraDrain 9000:
- No-clogging drainage performance
- Relieves hydrostatic pressure buildup
- Woven fabric better suited for a directly poured concrete topping than non-woven geotextile fabrics
- High-flow and effective drainage for most horizontal applications
- Enhances waterproofing system by channeling water away and providing a secondary water retention layer
- Lightweight, easy-to-install, aggregate free system
Properties of Carlisle Coatings and Waterproofing MiraDrain 9000:
- Thickness
ASTM D1777: 0.40 (10.16)
- Compressive Strength
ASTM D1621 (mod): 21,000 psi
- Maximum Flow Rate
ASTM D4716: 23 gpm/ft
- Apparent Opening Size
ASTM D4751: 40 (0.43)
- Water Flow Rate
ASTM D4491: 145 (5,907)
- Grab Tensile Strength
ASTM D4632: 365 (1624)
- Grab Longation
ASTM D4632: 24
- CBR Puncture Strength
ASTM D6241: 675 (3004)
